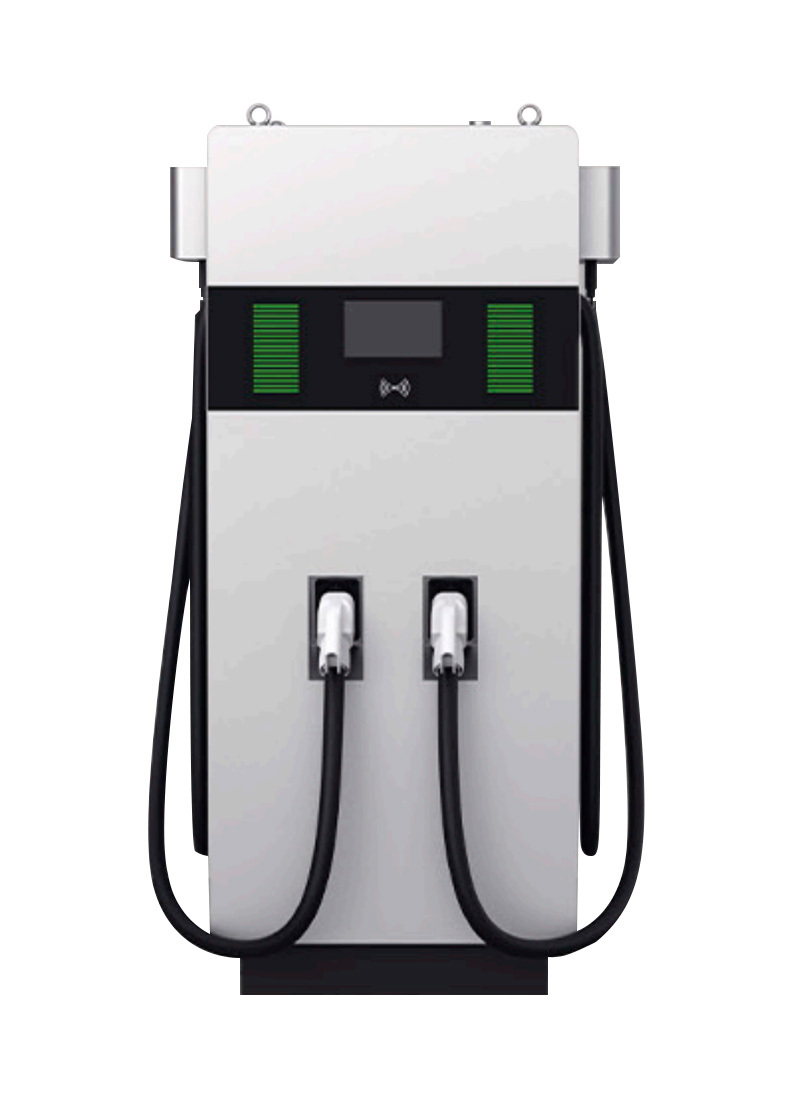

RENO-D2
High power efficiency:＞96% Smart power sharing 200-1000V of wide range to charge various EVS
Classification:
DC EV Chargers
Key words:
RENO-D2
Tel：
Email：
High power efficiency:＞96% Smart power sharing 200-1000V of wide range to charge various EVS
Product Description
|
Model No.
|
EVD100/60
|
EVD100/90
|
EVD100/120
|
EVD100/150
|
EVD100/180
|
|
|
AC Input
|
Number of Phase / Wire
|
3ph/L1, L2, L3, N, PE
|
||||
|
Voltage
|
200-480Vac
|
|||||
|
Max. Input Amperage
|
100A
|
135A
|
180A | 226A | 270A | |
|
Frequency
|
50~60Hz
|
|||||
|
Power factor
|
PF≥0.98@Rated load
|
|||||
|
Effificiency
|
96%
|
|||||
|
DC Output
|
Maxi Power
|
60KW
|
90KW
|
120KW
|
150KW
|
180KW
|
|
Voltage Operating Range
|
200-1000V
|
|||||
|
Max. Amperage
|
60A@1000Vdc
|
90A@1000Vdc
|
120A@1000Vdc
|
150A@1000Vdc
|
180A@1000Vdc
|
|
|
Charging Outlet
|
CCS1 with 13ft cable
|
|||||
|
Display
|
7" touch LCD
|
|||||
|
User Authentication
|
RFID ISO14443 A/B
|
|||||
|
EV Communication
|
DIN 70121/ ISO15118
|
|||||
|
Connectivity
|
LAN, Wi-Fi, 4G
|
|||||
|
OCPP1.6J
|
||||||
|
Operating Temperature
|
IP54
|
|||||
|
IP Level
|
NEMA 3R
|
|||||
|
Cooling
|
Forced Air
|
|||||
|
Operating noise level
|
≤65dB
|
|||||
|
Altitude
|
≤2000M
|
|||||
|
Product Dimensions
|
820*780*1781mm
|
|||||
|
Package Dimensions
|
1070*800*2000mm
|
|||||
Related Download
Related Products

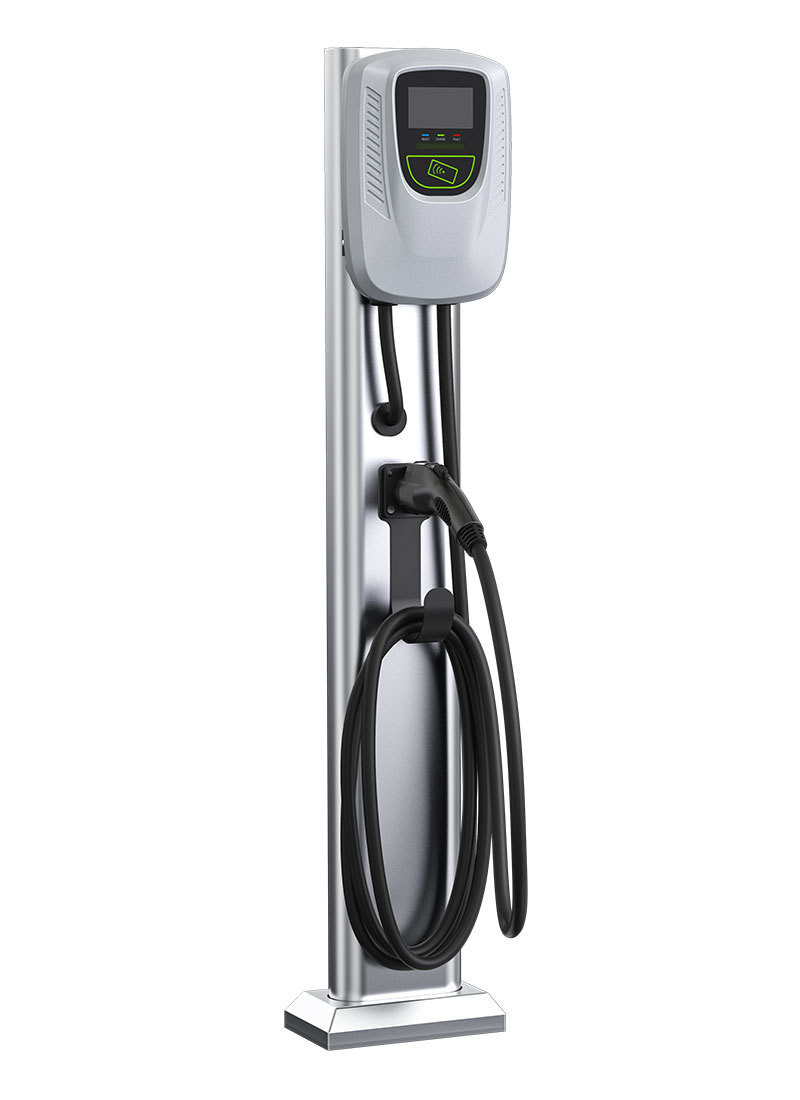

1-phase & 3-phase compatible 200-1000V of wide range to charge various EVS Pull-out power module, easy to maintain Widely used for home, malls, fleets, multi-family and so on
High power efficiency:＞96% Smart power sharing 200-1000V of wide range to charge various EVS

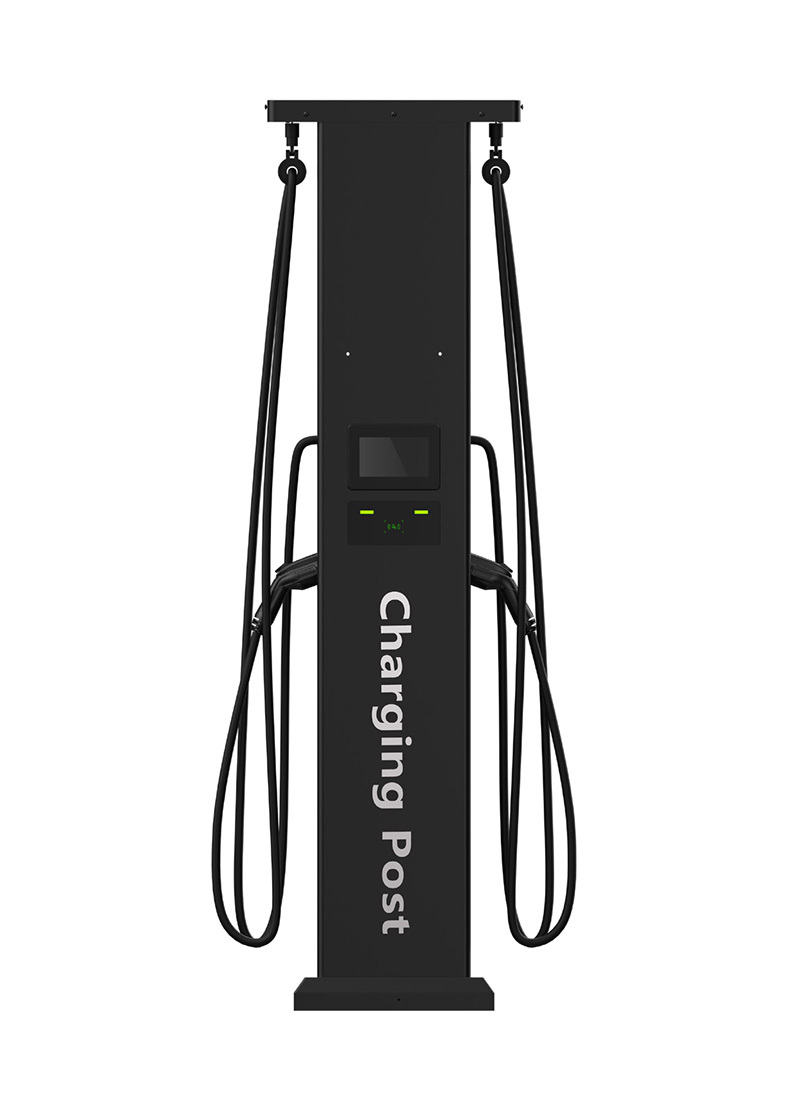

Fast-charging 2 EVs simultaneously and charge up to 75-miles within an hour 7" touch screen make driver easy to use Ideal for fleet deployment
